Turbelle® 6075 ORCA white
Turbelle® 6075 ORCA white

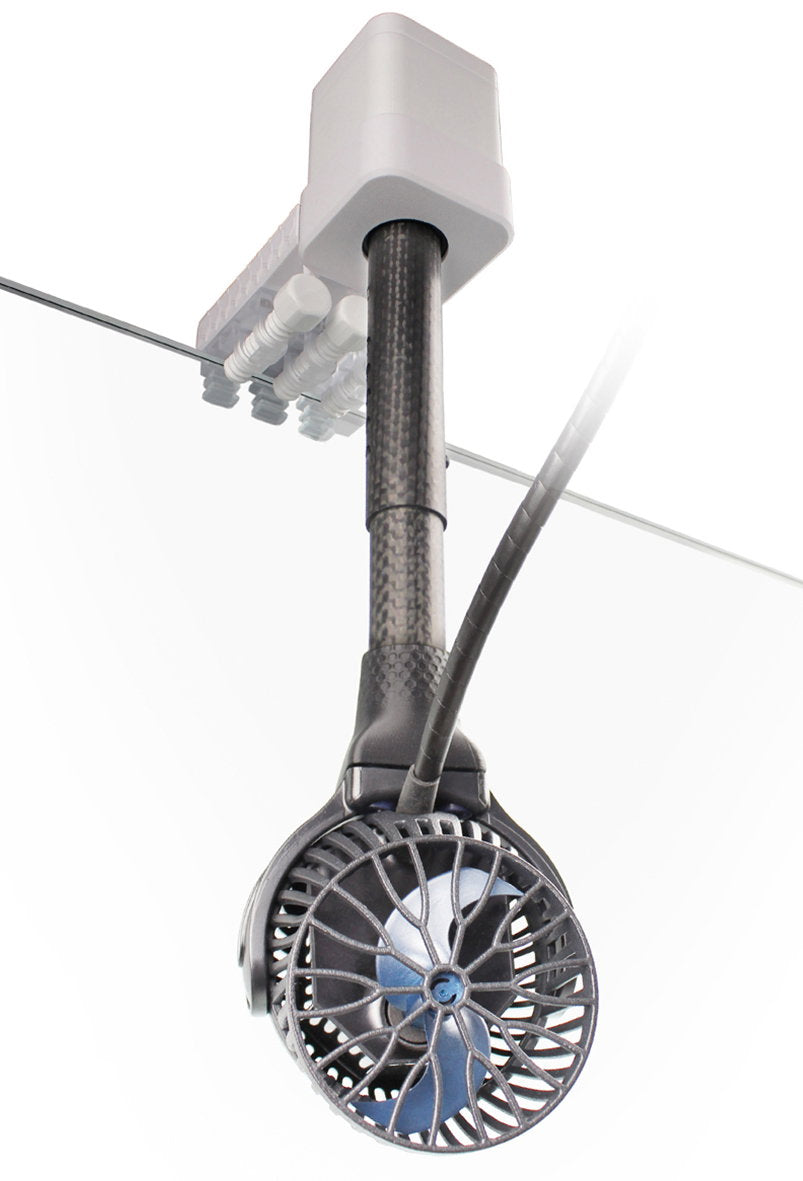

TUNZE® ORCA MK2 allows the circulation pump to be moved dynamically in the aquarium: precise and software-controlled by the extremely user-friendly TUNZE® app. This allows changing flow conditions to be created that mimic the natural movement of the sea. In combination with the TUNZE® App app, not only the direction but also the flow strength can be precisely controlled depending on the angle of rotation. The result: less pumping, more movement, and maximum control over the flow.
Turbelle® nanostream® 6075 ORCA is a complete set: pre-assembled, integrated, reliable. And, of course, with a 5-year warranty.
Turbelle® nanostream® 6075
For reef aquariums up to 500 liters (132 USgal.)
Flow rate: 2,700 up to about 7,500 l/h (~ 700 - 2,000 USgal./h)
Nominal input voltage: 12V DC SELV
Energy consumption: 1 - 8 W
Cable length: 3 m (9.8 ft) up to the controller
Power supply unit
Nominal input voltage: 100-240 V
Nominal input frequency: 50-60 Hz
Nominal input current: 0.5-0.25 Arms
Voltage output: 12 V DC
Nominal output current: 1,5 A
Specifications
Orientation and flow –
perfectly matched

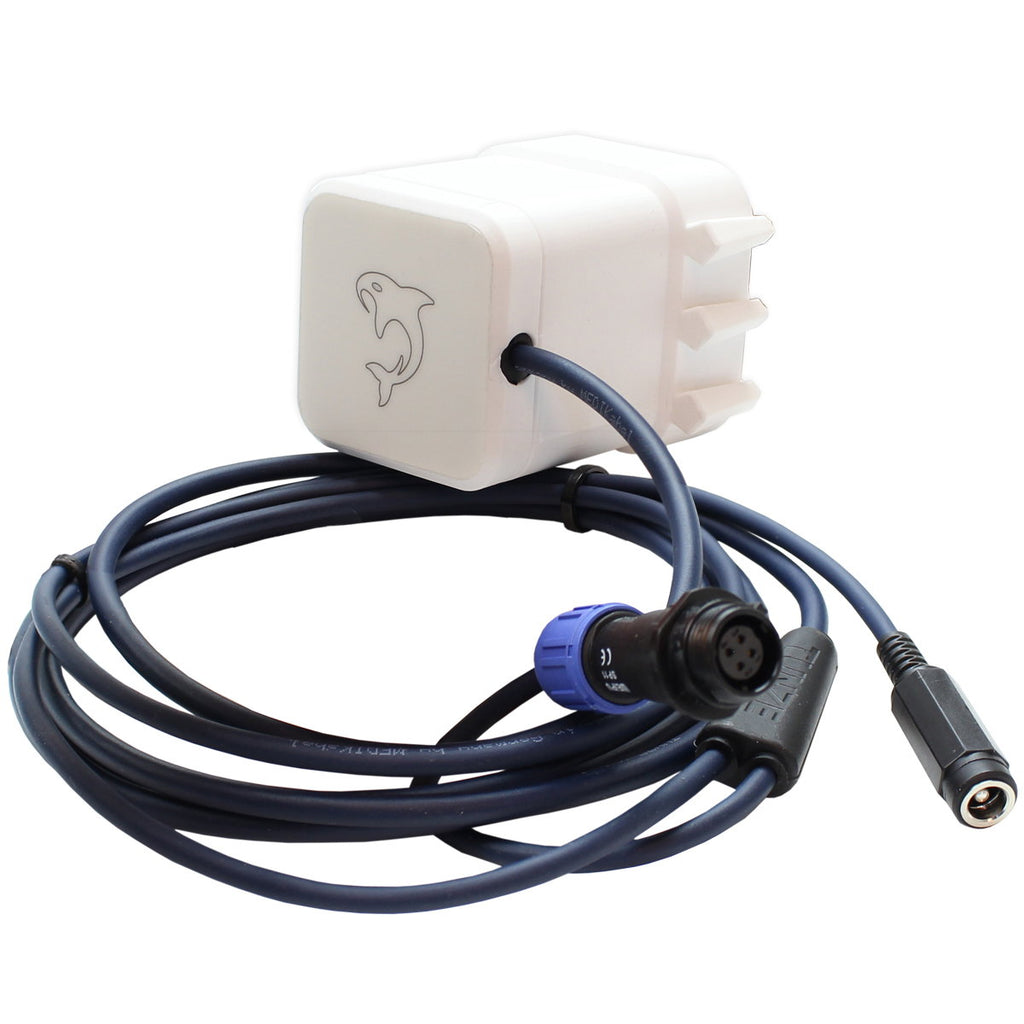

The TUNZE® ORCA oscillating unit not only controls the pump's rotational movement, but also allows the flow rate to be adjusted depending on the angle of rotation. For targeted flow scenarios – powerful or gentle, depending on the orientation.

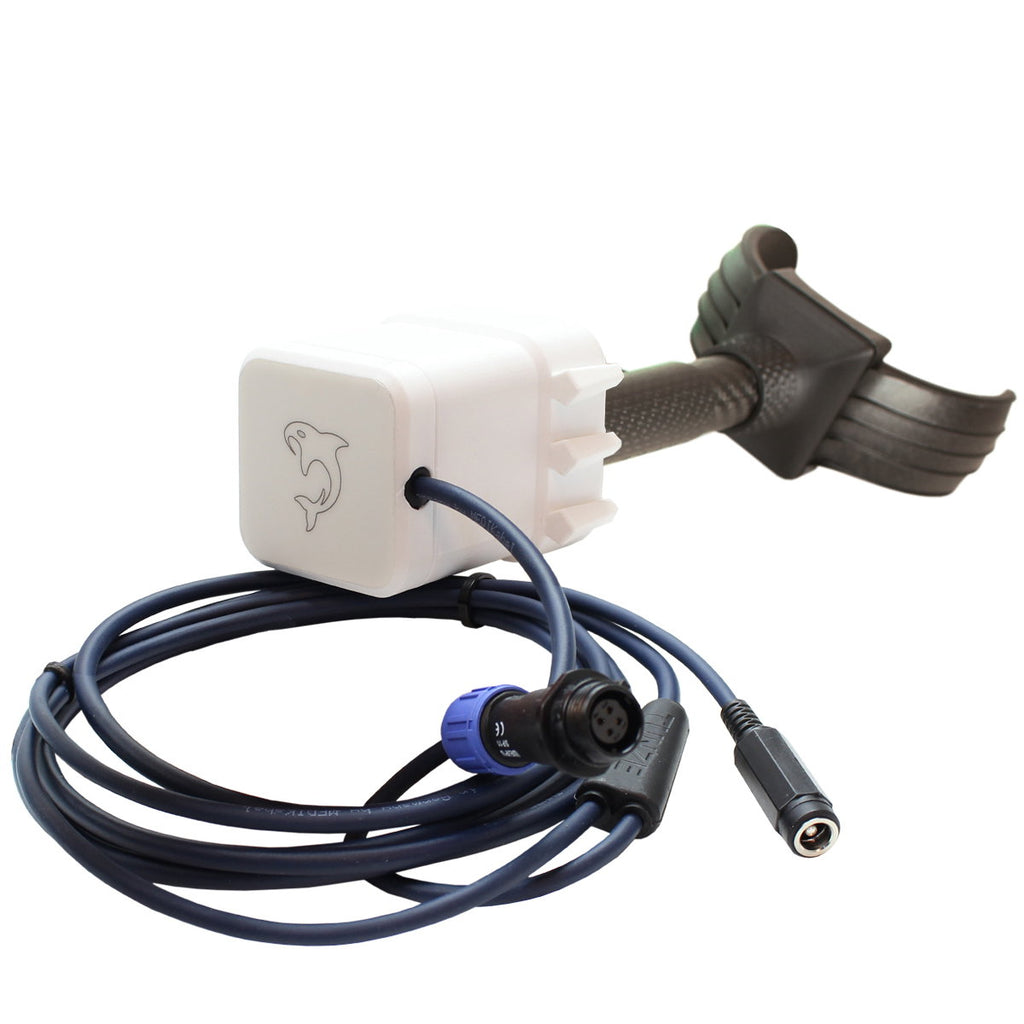

Complete system:
Oscillating unit + pump = plug & play
All from a single source: The TUNZE® ORCA oscillating unit is delivered as a fully coordinated system – including pump, mount, and app connection. Unpack, assemble, and start.
Made in Germany –
real manufacturing expertise
TUNZE® ORCA is built where we bring plastics, electronics, PU encapsulation, and system assembly together every day: in our production facility in southern Bavaria. From the electronics to the cables – many key components come directly from Germany or are manufactured in-house.
5-year warranty –
built for true long-term use
Designed for many years of operation in marine environments – including high-quality German-made drag chain cables. The warranty also applies to wear parts.
Magnetic encoder
for precise position detection
An integrated magnetic sensor precisely measures the pump's alignment. This ensures reliable alignment – without offset, without jumps, and without deviation.
Waterproof & corrosion-resistant
The electronics and control system are fully encapsulated in PU resin. All seals are securely designed. The TUNZE® ORCA oscillating unit is protected against splashes of water and temporary submersion.

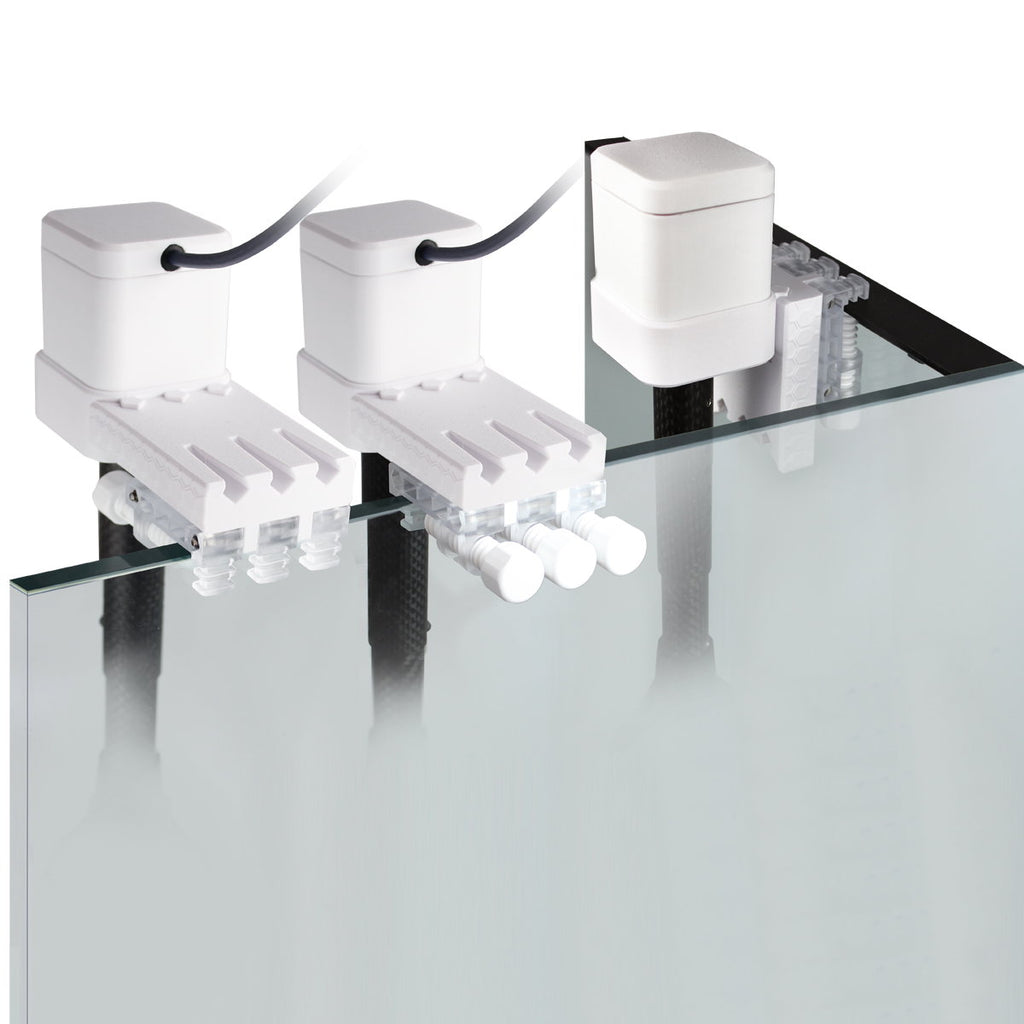

Versatile mount
for glass thicknesses up to 22 mm (0.87")
The included mount is suitable for both pools and aquariums with glass ledges. Installation is tool-free, secure, and flexible.

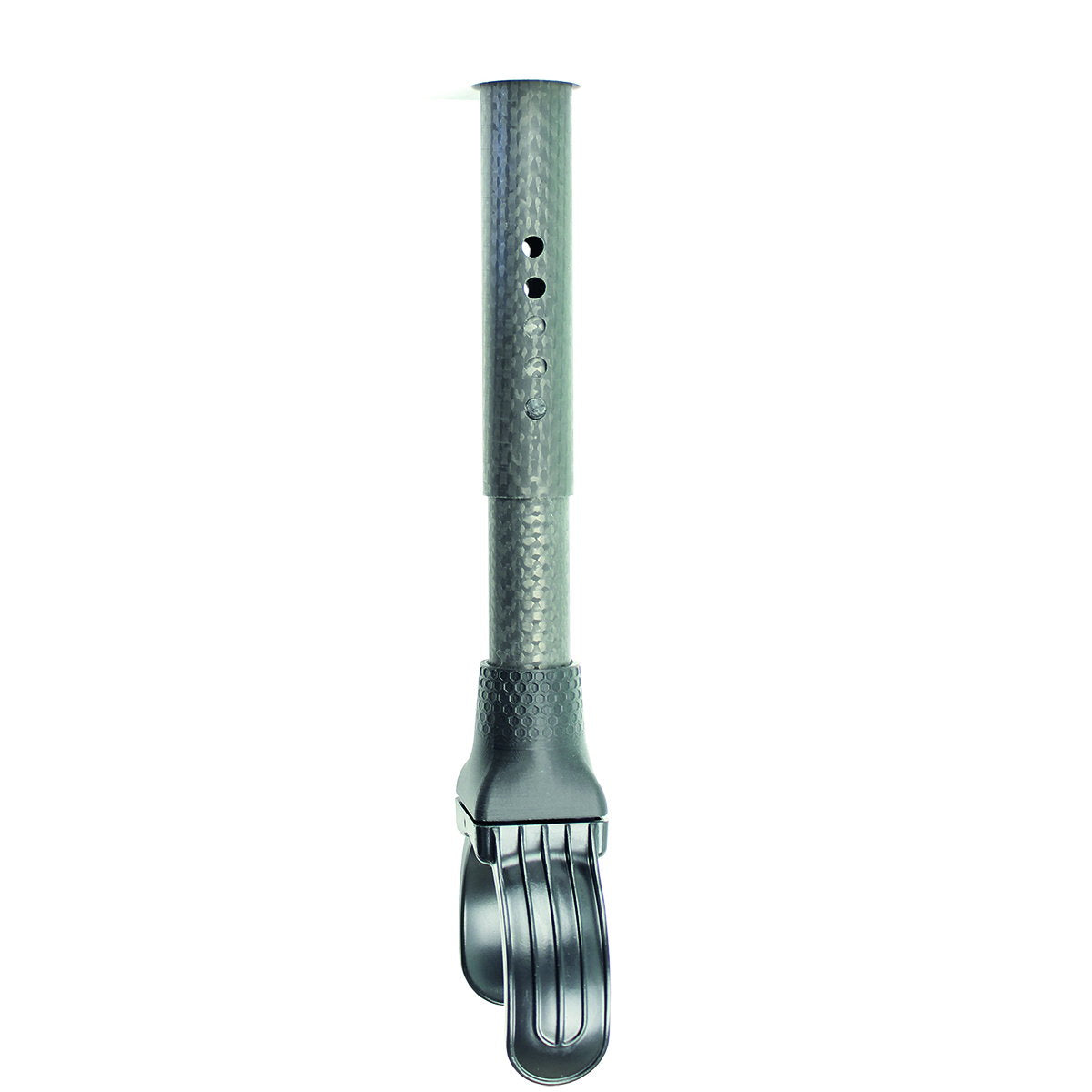

Finely adjustable length
The carbon tube can be adjusted in fine increments without the need for tools. The high-quality carbon fiber construction allows for flexible height adjustment with high stability.

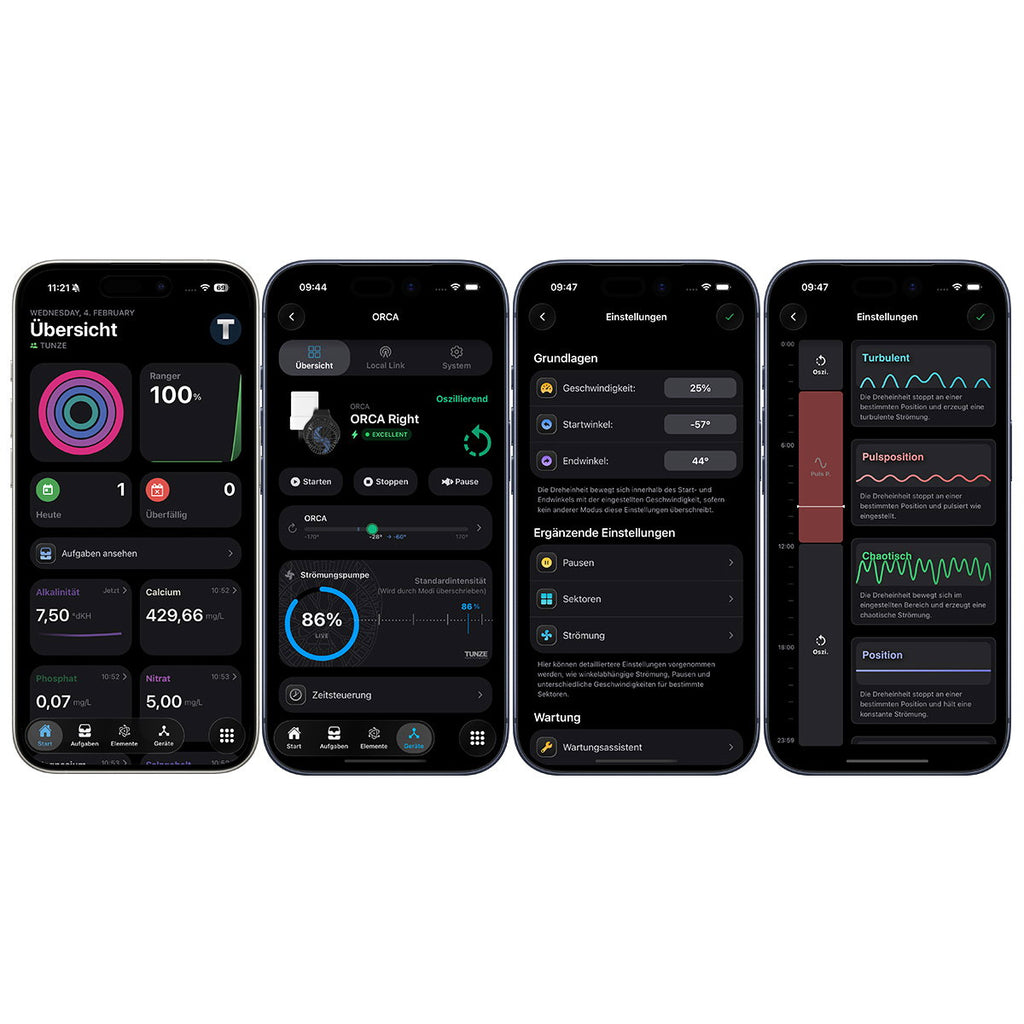

Control via TUNZE® app
The native, intuitive TUNZE® App (iOS & Android) controls all parameters. It serves as the central all-in-one platform for the entire TUNZE® system – developed by aquarists for aquarists.
Certified medical device power supply –
maximum safety
Medical device-certified power supply with high operational reliability, power reserves, and high efficiency. A strong heart for your TUNZE® ORCA.
Including Turbelle® nanostream® 6075
Flow rate of 7,500 L/h (~2,000 USgal./h) with only 8 W of power for an efficiency rate of over 937 L/h/W (250 USgal./h/W).
